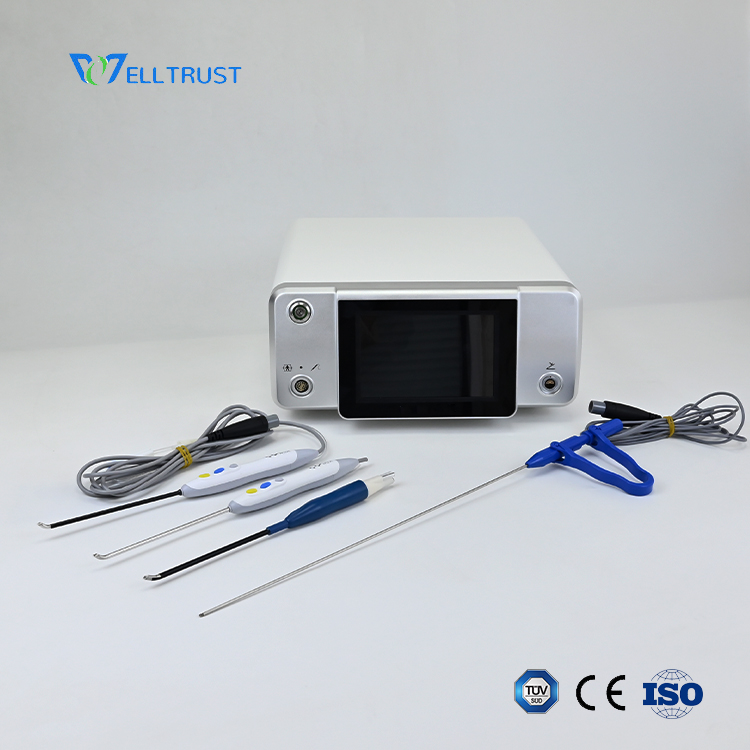

The Plasma Radiofrequency Surgical System is designed for tissue vaporization, ablation, coagulation and hemostasis in endoscopic and arthroscopic surgical workflows. It utilizes controlled plasma-based bipolar radiofrequency technology to deliver energy through compatible electrodes.
The console features a user-friendly LCD touchscreen, providing convenient access to system operation and output control. Its rectangular wave output supports rapid electrode-based tissue treatment, with a maximum stated ablation speed of 4 g/min.
The system also incorporates automatic monitoring and control functions, including a fault self-test, automatic start-stop function and automatic output power adjustment. These functions are designed to support consistent system operation and help protect the arthroscopic imaging equipment during use.

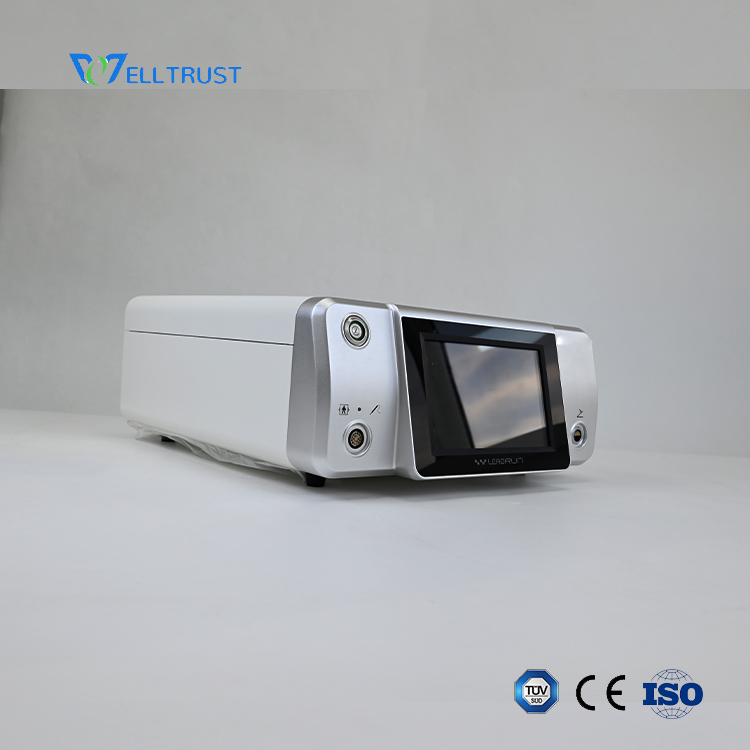

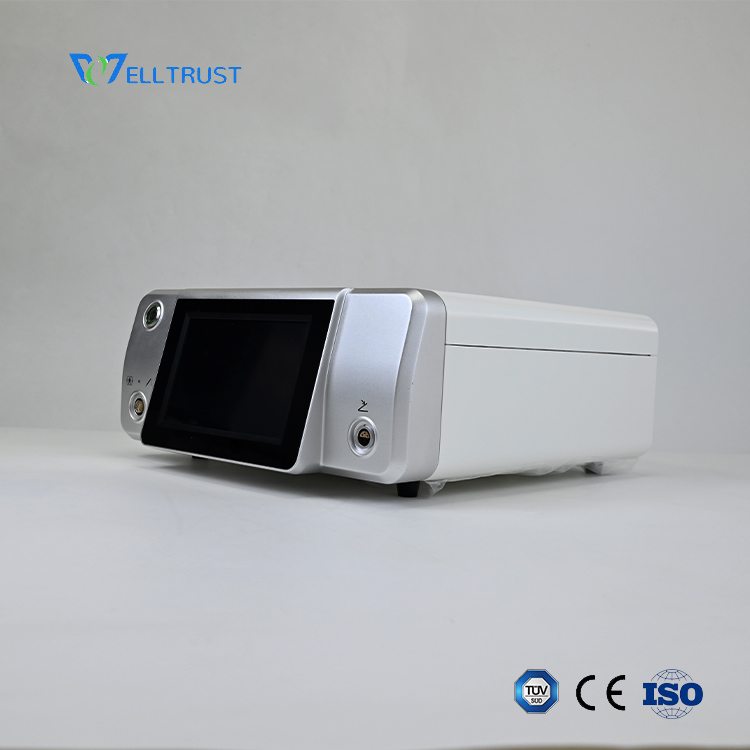

The console integrates the main plasma radiofrequency control functions into a compact operating unit.
LCD Touchscreen
The LCD touchscreen provides a clear interface for operating the system and adjusting relevant output parameters.
Multiple Tissue Treatment Functions
The system supports:
Controlled Bipolar RF Technology

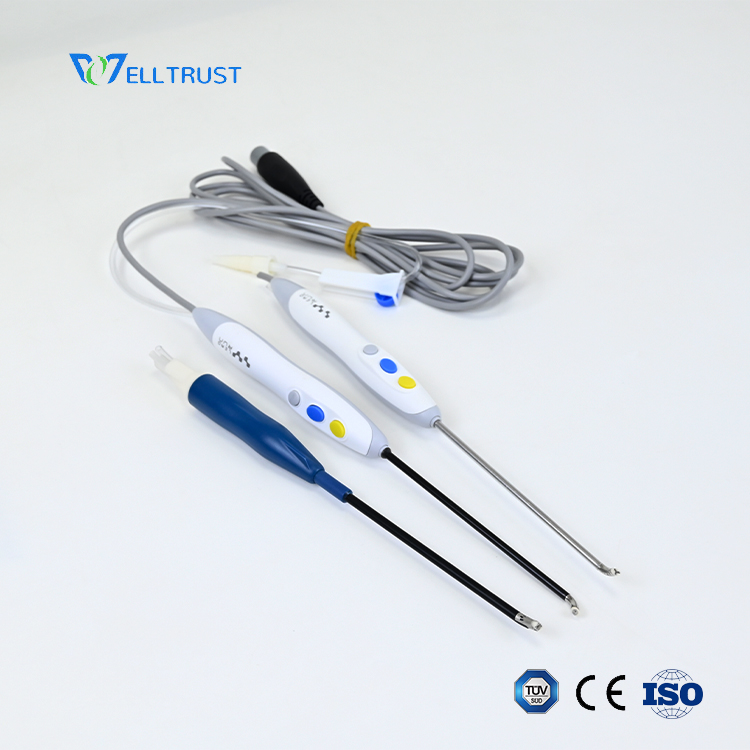

The system uses controlled plasma-based bipolar RF technology for localized energy delivery through compatible electrodes.
Rectangular Wave Output
The rectangular wave output is designed for rapid electrode-based tissue treatment, with a maximum stated electrode ablation speed of 4 g/min.
Automatic Monitoring and Control
The console includes a fault self-test function together with automatic start-stop and output power adjustment functions.
The wireless footswitch provides hands-free control during procedures.
The wireless configuration can help reduce cable management around the operating area while allowing the operator to control the system from a suitable working position.
| Item | Specification |
|---|---|
| Product Type | Plasma Radiofrequency Surgical System |
| RF Technology | Controlled Plasma-Based Bipolar RF |
| Control Interface | LCD Touchscreen |
| Main Functions | Vaporization, Ablation, Coagulation, Hemostasis |
| Waveform | Rectangular Wave |
| Maximum Electrode Ablation Speed | 4 g/min |
| Tissue Thermal Damage Depth | <200 μm |
| Self-Test | Fault Self-Test Function |
| Start-Stop Function | Automatic |
| Output Adjustment | Automatic Output Power Adjustment |
| Footswitch | Wireless |
| Communication Distance | Up to 10 m |
| Footswitch Waterproof Rating | IP68 |
| Pedal Design | Large Pedal |
The Plasma Radiofrequency Surgical System can be incorporated into arthroscopic and endoscopic surgical workflows requiring controlled tissue ablation, coagulation or hemostasis.
Typical application functions include:
For an RF system, the specific electrode, operating mode and clinical application should be selected according to the intended procedure and the applicable product documentation. Different RF/plasma systems can have substantially different electrode configurations and approved indications.
It is designed to support tissue vaporization, ablation, coagulation and hemostasis using controlled plasma-based bipolar RF technology.
The system utilizes controlled plasma-based bipolar RF technology.
Yes. The system is equipped with a wireless footswitch with a communication distance of up to 10 meters and an IP68 waterproof rating.
Yes. The console includes a fault self-test, automatic start-stop and automatic output power adjustment functions.
