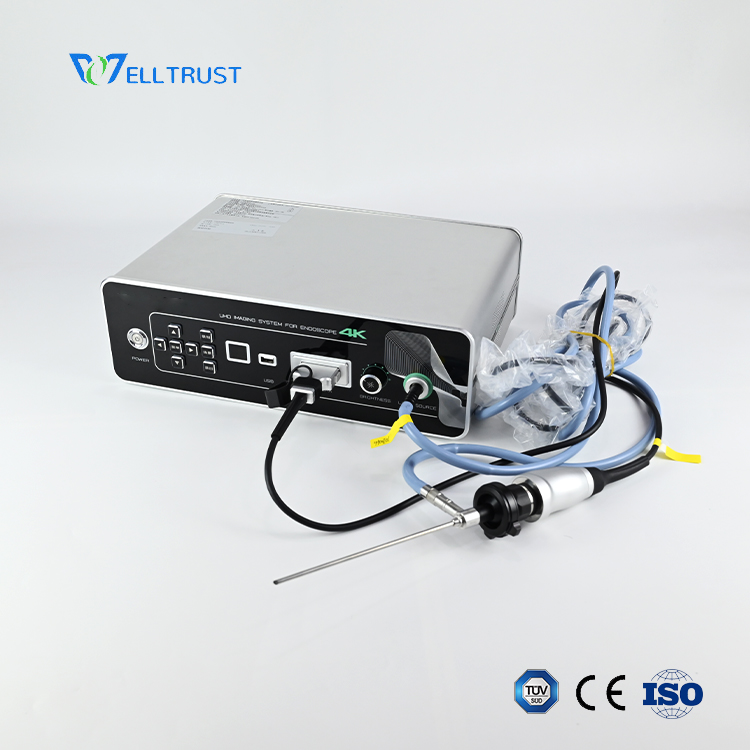

4K UHD Medical Endoscope Camera System is an integrated imaging solution designed for medical endoscopic visualization. The system combines a 4K UHD endoscope camera, camera head, high-resolution monitor and imaging workstation functions to provide real-time high-resolution images during endoscopic procedures.

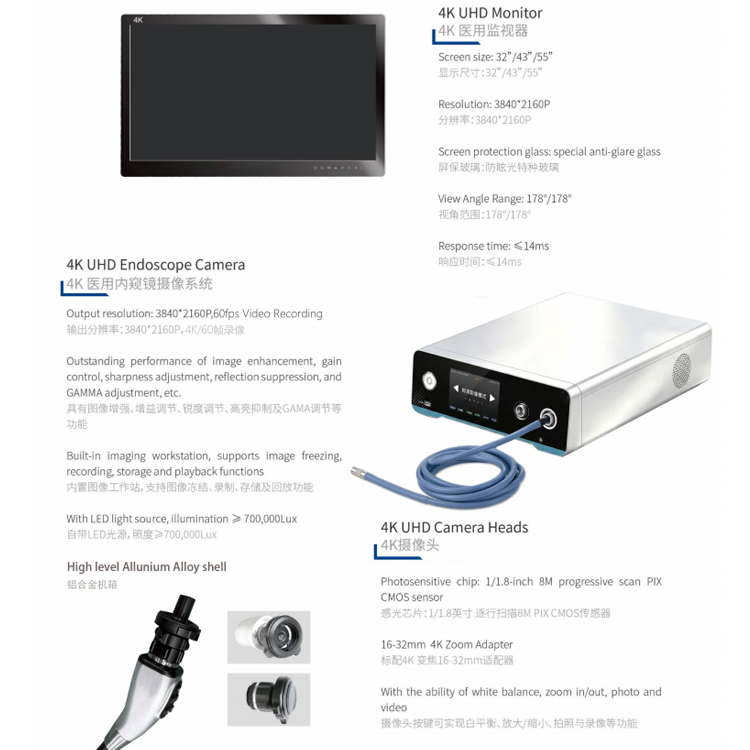

The camera system supports 3840 × 2160P output at up to 60fps, providing detailed image reproduction for endoscopic observation and video recording. Image adjustment functions include gain, sharpness, image enhancement, reflection suppression and gamma adjustment.

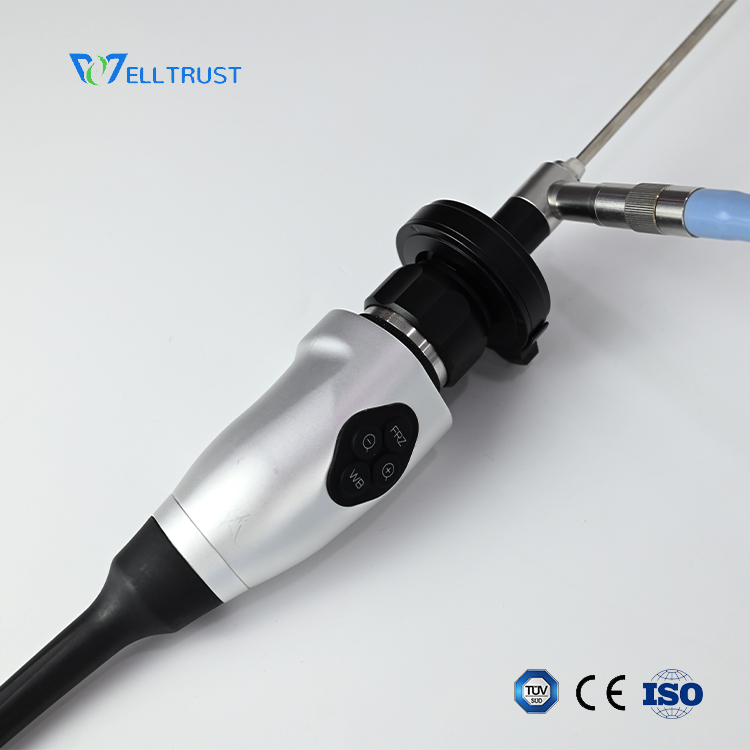

The 4K UHD endoscope camera uses a 1/1.8-inch, 8 MP progressive-scan CMOS imaging sensor. The system provides several image adjustment functions to help users optimize the displayed image according to the observation requirements.
Available functions include:
The 16–32 mm 4K zoom adapter provides additional flexibility for image magnification and observation during endoscopic procedures.
The system can be configured with 32-inch, 43-inch or 55-inch 4K UHD monitors. The monitor resolution is 3840 × 2160P, with a viewing angle of 178°/178° and a response time of less than 14 ms.
The display uses special anti-glare glass to help reduce reflections during image observation.
The system is equipped with an LED light source providing illumination of more than 70,000 lux. Adequate illumination helps provide a clear visual field during endoscopic examination and procedures.
The 4K UHD Medical Endoscope Camera System is designed for medical endoscopic visualization and can be integrated into endoscopic imaging workflows where high-resolution real-time image display and video recording are required.
For arthroscopic applications, the camera system can work as part of an endoscopy system together with compatible endoscopes, light sources and related arthroscopic instruments. The existing Trust Arthroscopy website also presents Endoscopy System as a core component of arthroscopy, consisting of camera, light source and high-definition monitor.
The system can be considered by hospitals, surgical centers, endoscopy departments, orthopedic departments, distributors and medical equipment suppliers according to their specific equipment requirements.
Well Trust provides medical endoscopy and arthroscopy-related products for professional customers and can provide product information and configuration support according to project requirements.
It is designed to provide high-resolution real-time imaging, video recording and display for medical endoscopic visualization and related procedures.
The system supports 3840 × 2160P 4K UHD video output, with up to 60fps video recording.
The 4K UHD monitor is available in 32-inch, 43-inch and 55-inch options.
Yes. The built-in imaging workstation supports image freezing, recording, storage and playback functions.
