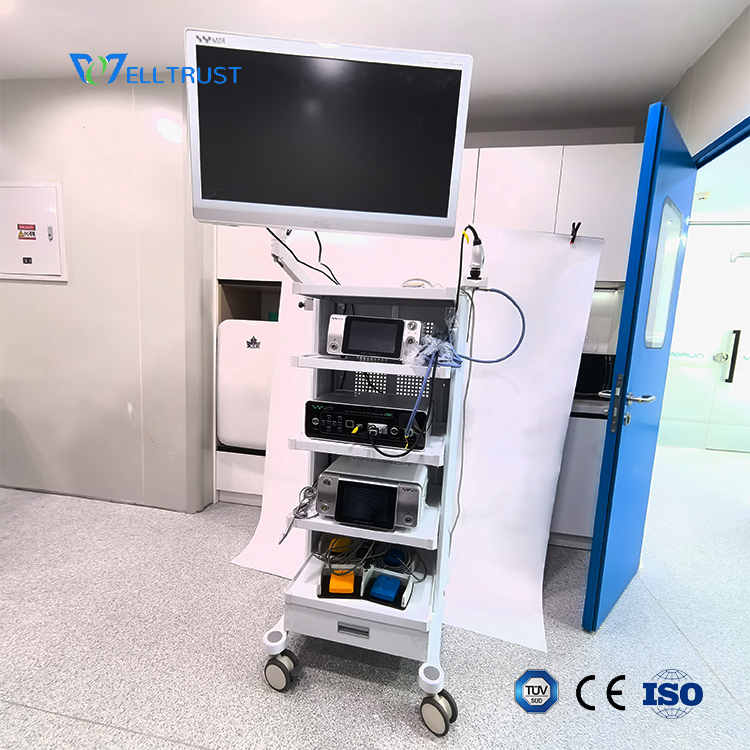

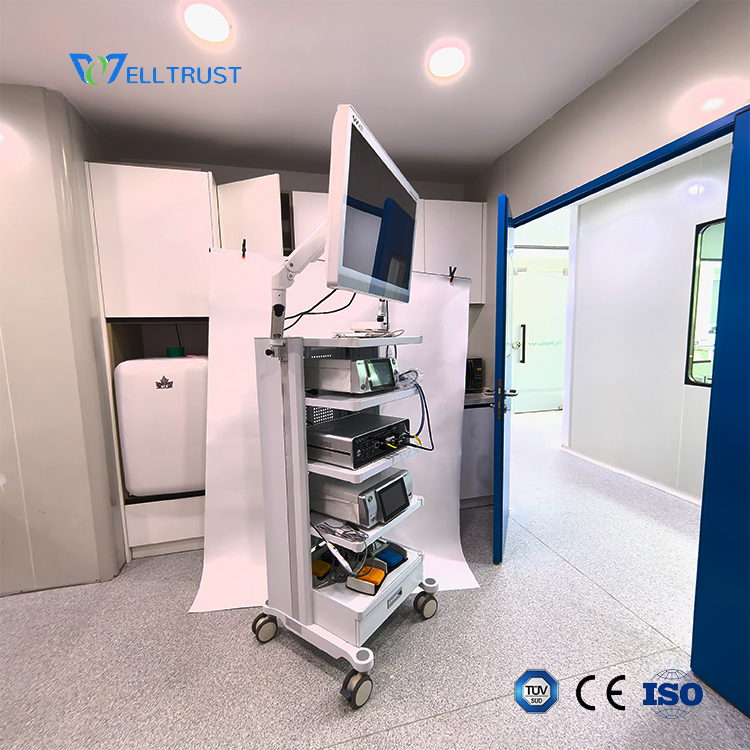

The FHD Medical Endoscope Camera System is an integrated imaging solution designed for medical endoscopic visualization. The system combines an FHD endoscope camera, HD camera head, LED light source, imaging workstation and medical endoscope monitor into one configuration.
With 1920 × 1080P resolution and up to 60fps video output, the system provides high-definition image acquisition for endoscopic imaging workflows. The camera supports automatic white balance and automatic backlight compensation, together with image enhancement, gain control, sharpness adjustment, reflection suppression and GAMMA adjustment.

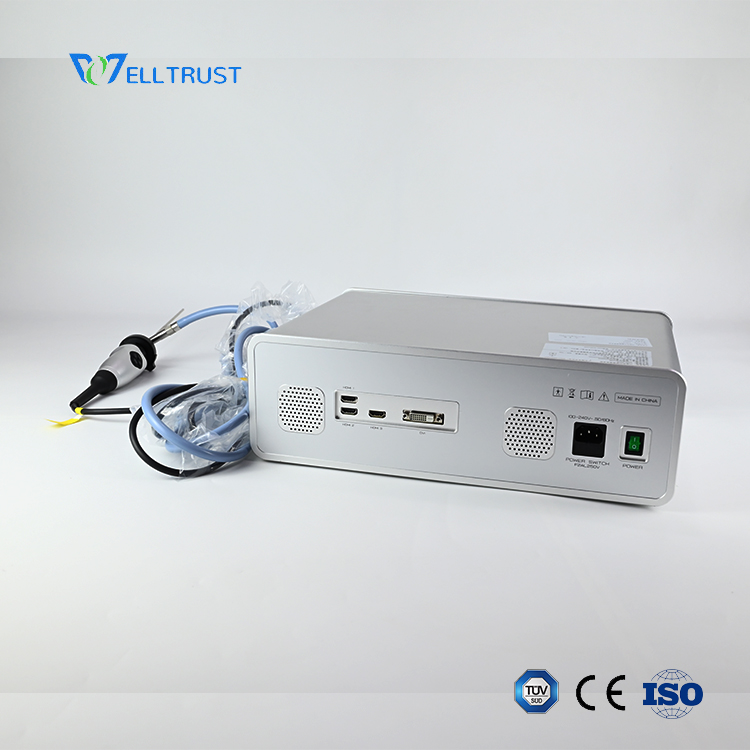

The integrated imaging workstation supports image freezing, recording, storage and playback, allowing users to capture and review endoscopic images and video during use.
| Item | Specification |
|---|---|
| System Type | FHD Medical Endoscope Camera System |
| Camera Output | 1920 × 1080P |
| Video Frame Rate | Up to 60fps |
| Image Sensor | 1/1.8-inch Progressive Scan Full HD CMOS |
| Zoom Adapter | 16–32mm HD Zoom Adapter |
| Camera Functions | White Balance, Zoom In/Out, Photo, Video |
| Image Adjustment | Gain, Sharpness, Reflection Suppression, GAMMA |
| Backlight Compensation | Automatic |
| Imaging Functions | Freeze, Recording, Storage, Playback |
| Light Source | LED |
| Illumination | ≥70,000 lux |
| Monitor Size | 27" / 32" |
| Monitor Resolution | 1920 × 1080P |
| Monitor Viewing Angle | 178° / 178° |
| Monitor Response Time | ≤14ms |
| Screen Protection | Special Anti-Glare Glass |
The FHD Endoscope Camera System can be incorporated into medical endoscopic and arthroscopic imaging workflows, providing real-time HD visualization and image/video recording.
Its integrated camera, illumination, imaging workstation and monitor configuration is suitable for facilities that require an FHD endoscopic imaging platform while maintaining a practical system configuration.
When selecting an FHD endoscopy system, users may consider:
WELL TRUST can provide endoscopy imaging equipment and related configuration options according to customer requirements.
The system provides 1920 × 1080P FHD output resolution with video output of up to 60fps.
The FHD medical endoscope monitor is available in 27-inch and 32-inch options.
Yes. The integrated imaging workstation supports image freezing, recording, storage and playback.

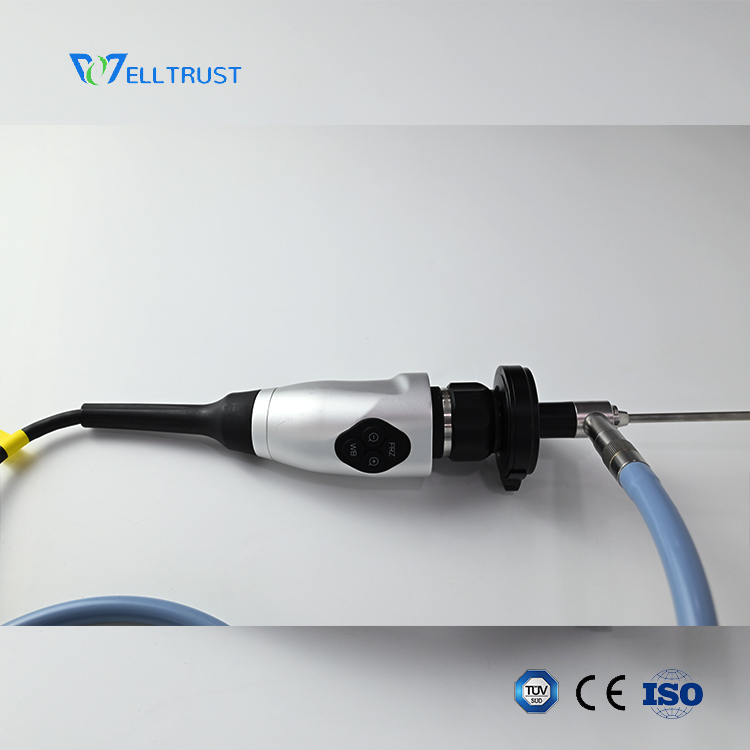

The camera head uses a 1/1.8-inch progressive-scan Full HD CMOS sensor and is equipped with a 16–32mm HD zoom adapter.
