CJ-02A ACL/PCL All-in-One Cruciate Ligament Localization System
The CJ-02A ACL/PCL All-in-One Cruciate Ligament Localization System is an organized arthroscopic instrument set for professional ACL and PCL reconstruction workflows. The set is designed to assist with planned tibial and femoral tunnel localization and drilling preparation under the responsible surgeon's selected technique.
The catalog image shows dedicated ACL and PCL location hooks, including an ACL Tibial Location Hook, a PCL Tibial Location Hook, an ACL Femur Location Hook and a PCL Femur Location Hook. These components allow the instrument set to be configured for the intended cruciate ligament localization step, subject to the applicable surgical approach and instructions for use.

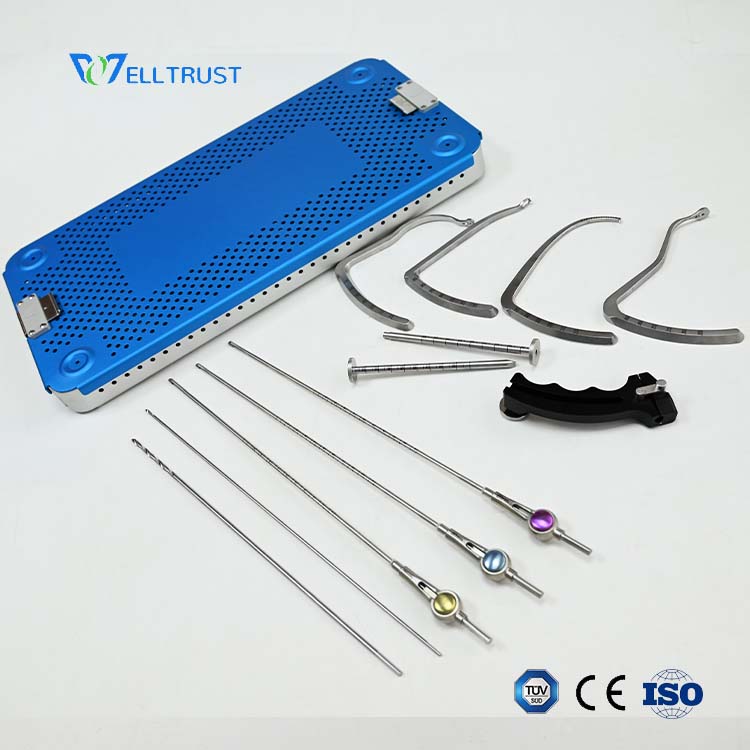

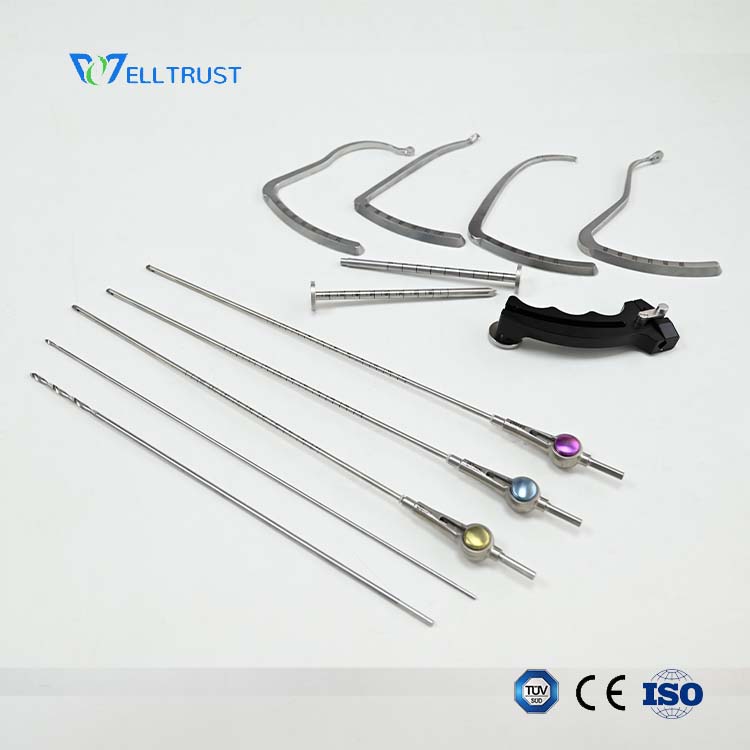

The set also shows 7 mm, 8 mm and 9 mm drill bits, 2.5 mm and 3.5 mm sleeves, a 2.4 mm guide pin, an aimer handle and a drill. Together, these components are intended to support the instrument sequence selected by the surgical team for guide placement and tunnel preparation. The final drill sequence, tunnel dimensions, graft technique and fixation method must be determined by the responsible surgeon and validated product documentation.

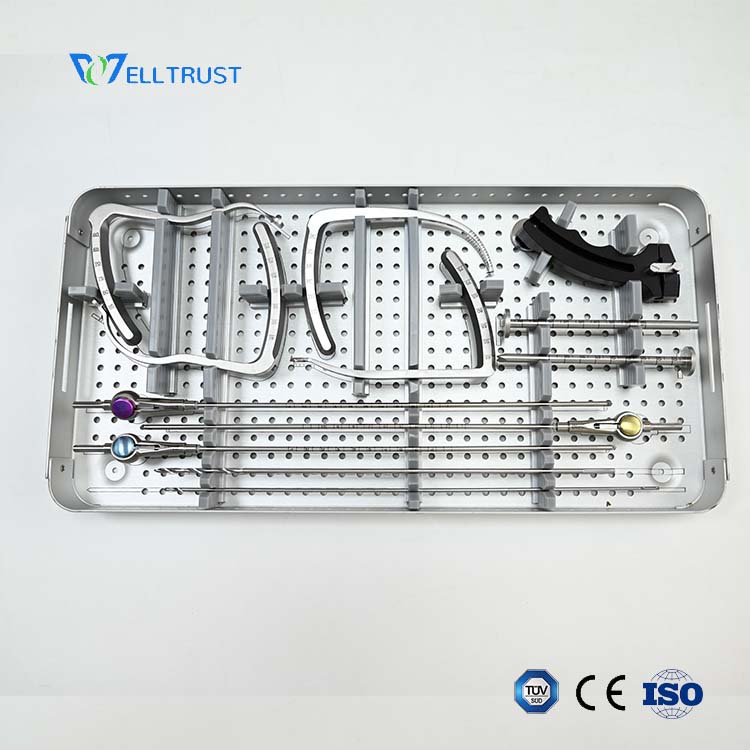

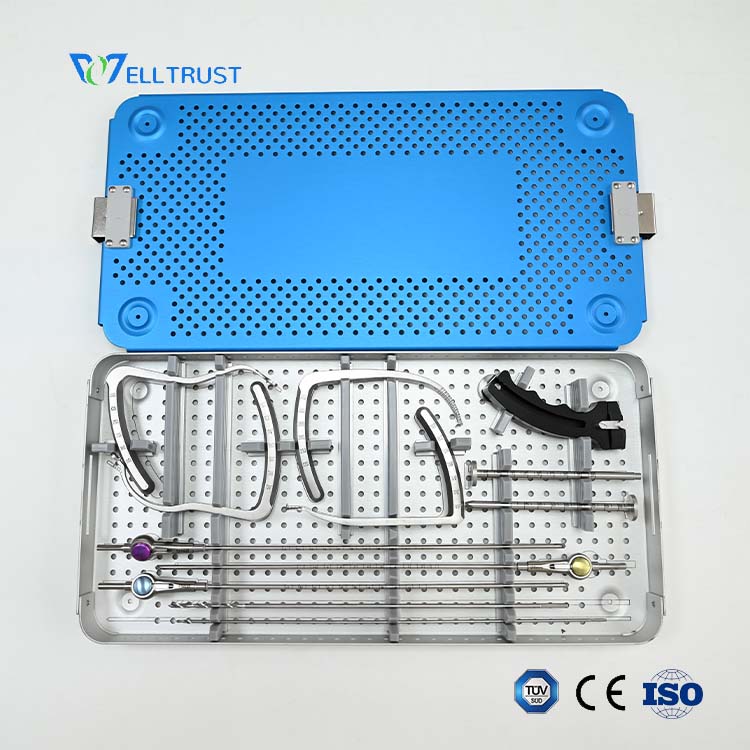

All components are shown in an aluminum storage box identified with order code CJ-02A. An organized case can help the operating team identify the ACL/PCL reconstruction instruments, maintain set completeness and prepare the required components before surgery. The supplied image does not confirm the case's sterilization or packaging status.
The CJ-02A is intended for trained orthopedic and sports-medicine professionals. It is an instrument set, not an implant, graft, suture button or fixation device. It should be used only after the product material, reusable or disposable status, cleaning and sterilization requirements, component compatibility and instructions for use have been confirmed.
Components shown in the catalog image:
Technical information boundary: The supplied image does not clearly confirm the material grade, exact working lengths, hook angles, drill shank interface, guide pin length, case dimensions, sterilization method, sterile status, regulatory certificates, packaging configuration or joint-specific surgical indication. These details should be added only after confirmation from the current technical file, product label or instructions for use.
1. What is the CJ-02A ACL/PCL instrument set used for?
CJ-02A is an organized instrument set intended to assist ACL and PCL cruciate ligament localization and drilling preparation during professional knee reconstruction procedures.
2. Which ACL and PCL location hooks are included?
The catalog image shows an ACL Tibial Location Hook, a PCL Tibial Location Hook, an ACL Femur Location Hook and a PCL Femur Location Hook.
3. Which drill bit sizes are shown?
The supplied image shows 7 mm, 8 mm and 9 mm drill bits. Confirm the final working length, shank interface and intended technique in the current technical documentation.
4. Which sleeves are included?
The catalog image shows 2.5 mm and 3.5 mm sleeves. The image does not provide sufficiently clear information about their complete dimensions or compatibility.
5. Is a guide pin included?
Yes. A guide pin marked 2.4 mm is shown in the catalog image. Its length and final package details require confirmation from the current product specification.
6. Does CJ-02A include implants or fixation devices?
No. CJ-02A is presented as an ACL/PCL localization and reconstruction instrument set. It should not be described as including an implant, graft, suture button, interference screw or other fixation device unless the package contents are separately confirmed.
7. Is CJ-02A supplied sterile?
Sterile status and sterilization requirements are not shown in the supplied image. Do not describe the set as sterile or ready for implantation unless the product label and instructions for use confirm it.
8. Is the aluminum box part of the set?
An aluminum box is shown as item 13 in the catalog image. Confirm whether it is included as standard packaging, a sterilization container or a separate storage case before publishing the final package description.
